The maximum pressure for the concrete crusher is 31 MPA or 4,496 PSI. Adjusting over this level of pressure is not recommended. Normal pressure is about 20-25 MPA or 2,900 - 3,265 PSI. However it depends on the machine as well. The best way to find out is to start at 15 MPA and increase the pressure until the power needed.

Tip: The lifespan of the hydraulic cylinder will be longer with lower pressure.

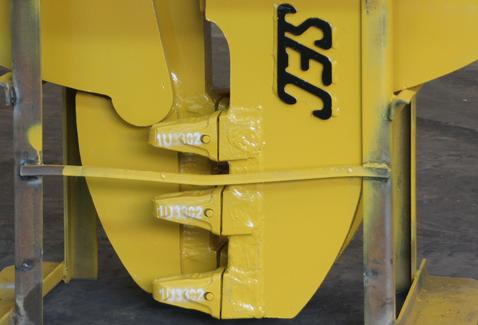

The replaceable teeth greatly increase the life span of the concrete crusher. Easily replace them after they are worn down with 1U-3302 size bucket teeth.

Applications
  • Crushing of rock and concrete
  • Reducing volume of debris
  • Ideal for handling refuse

GET A QUOTE!

Enter your inquires and info at the form.

We will get to you as soon as possible.

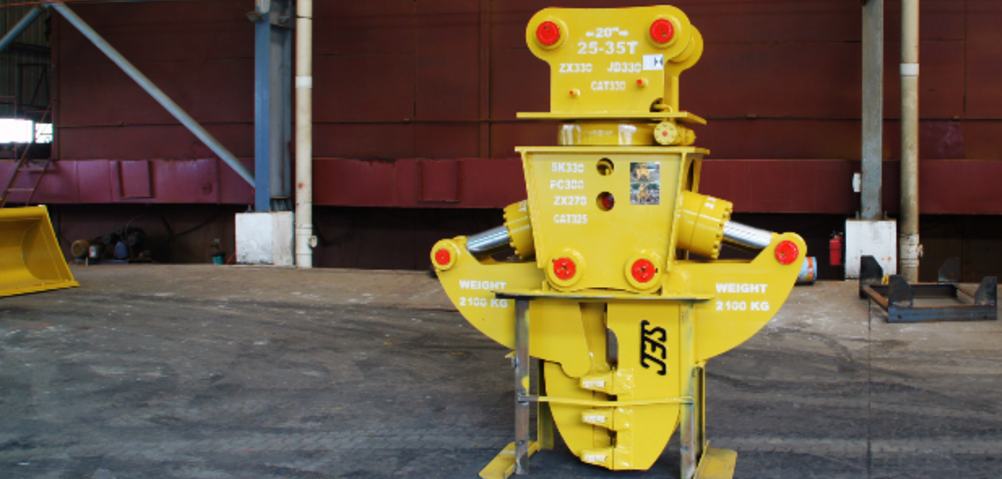

V-CONCRETE CRUSHER

Features and Benefits

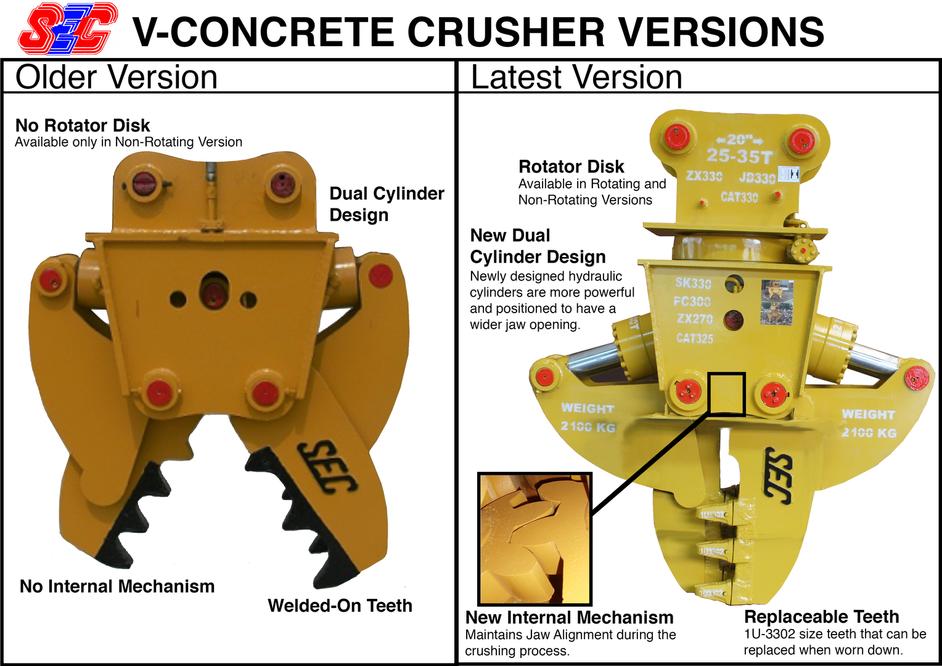

Our Rotating V-Concrete Crusher with Replaceable Teeth easily crushes rock and concrete chunks into smaller fragments. The dual hydraulic cylinder design reduces cycle time to quickly reduce material.

The 360 degree rotation feature allows for easy access to different types and angles when crushing materials, increasing operator productivity and ease of use.

Note: The rotator disk must be greased every 50 hours of operation.

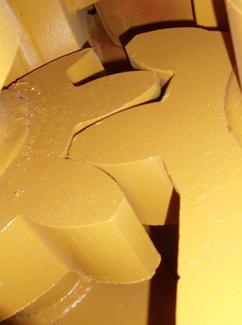

A new internal mechanism inside the Concrete Crusher helps maintain jaw alignment during the crushing process.
