*Dimensions and weights provided are based on established production standards for  attachments with pin-on mounts, but variations may occur due to the manufacturing process.

Skeleton Digging Bucket Specifications

Features and Benefits

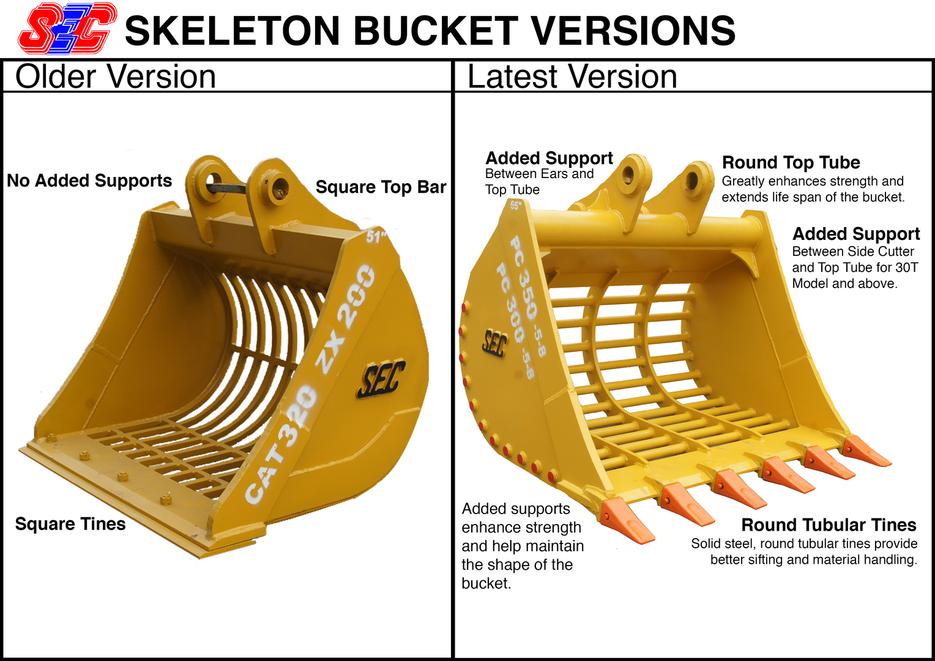

The Rounded top tube greatly enhances strength. Reinforced corners between the side cutter and top tube, as well as between the top tube and the ears are there to give additional support to maintain the shape of the bucket extending the life span of the bucket.


Our Skeleton Buckets are a versatile and portable method of separating materials. Designed to be tough and increase productivity. A thicker side bar for protection as well as improving the digging ability of the bucket. And solid steel round tubular tines provide better sifting and material handling, making for a more efficient sorting process.

Applications

  • Quarrying in rivers
  • Separating debris and large stones from soil

Machine
Metric Tons		 Width
/In		 Length
/In		 Height
/In		 Weight
/KG		 Width
/mm		 Length
/mm		 Height
/mm		 Weight
/Lbs
12 45 50 43 561 1,143 1,270 1,092 1,237
48 50 43 582 1,219 1,270 1,092 1,283
20 51 54 51 683 1,295 1,372 1,295 1,506
54 54 51 845 1,372 1,372 1,295 1,863
57 54 51 870 1,448 1,372 1,295 1,918
58 54 51 875 1,473 1,372 1,295 1,929
60 54 51 974 1,524 1,372 1,295 2,147
25 60 60 53 993 1,524 1,524 1,346 2,189
63 60 53 1,015 1,600 1,524 1,346 2,238
30 65 63 61 1,338 1,651 1,600 1,549 2,950
68 63 61 1,358 1,727 1,600 1,549 2,994
