*Dimensions and weights provided are based on established production standards

 for attachments with pin-on mounts, but variations may occur due to the manufacturing process.

Compact Version

Standard Version

Machine
Metric Tons		 Width
/In		 Length
/In		 Height
/In		 Weight
/KG		 Width
/mm		 Length
/mm		 Height
/mm		 Weight
/Lbs
Backhoe 30 44 50 336 762 1,118 1,270 741
30 40 54 340 762 1,016 1,372 750
6 30 40 51.5 317 762 1,016 1,308 699
12 34 45 58 541 864 1,143 1,473 1,193
20 41 49 55.5 836 1,041 1,245 1,410 1,843

Hydraulic Grapple Compact Version Specifications

Hydraulic Grapple Standard Version Specifications

Features and Benefits

The Hydraulic Grapple has a large jaw opening that allows it to pick up large materials, and the hydraulic design of the grapple give it better grip, so it can grab large and uneven loads, increasing productivity and efficiency in loading cycles.

​The Standard Hydraulic Grapple has the ability to handle large loads, making it ideal for site cleanup and material handling. But a Compact Version is also available when the job site has tight working spaces.
Applications
  • Scrap Handling
  • Logging
  • Job site clean up
  • Sorting
  • Structure Demolition
Machine
Metric Tons		 Width
/In		 Length
/In		 Height
/In		 Weight
/KG		 Width
/mm		 Length
/mm		 Height
/mm		 Weight
/Lbs
12 34 32 77 800 864 813 1,956 1,764
20 43 36 82 1,134 1,092 915 2,083 2,500
25 43 36 84 1,250 1,092 915 2,134 2,756


​​OVERVIEW

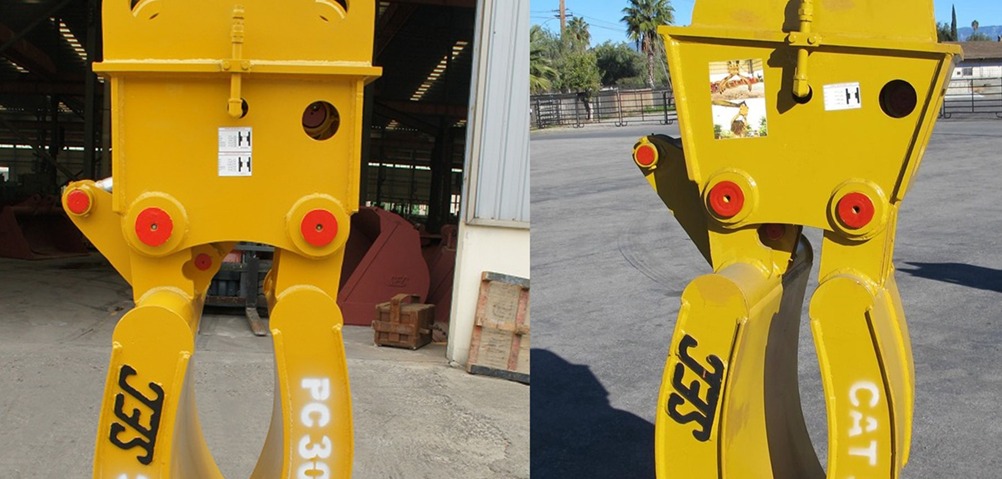

HYDRAULIC GRAPPLE
