*Dimensions and weights provided are based on established production standards for  attachments with pin-on mounts,  but variations may occur due to the manufacturing process.

Manual Grapple Specifications

Features and Benefits

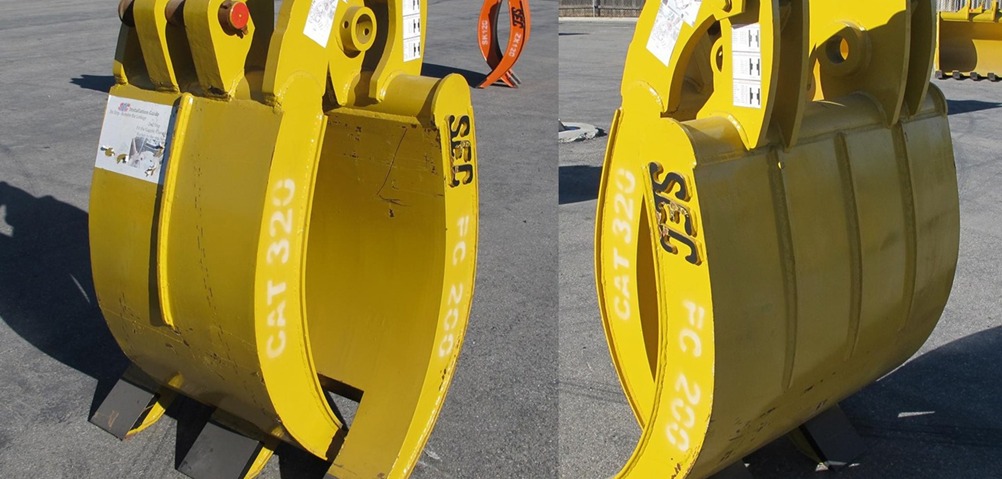

The Manual Grapple easily grabs objects and refuse using the excavator curl cylinder. No additional hydraulics are needed to operate the grapple. It is easy to install and easy to operate just using the hydraulics that are already on the machine. It has a 3 x 2 tine design which makes it quick and effective in sorting and sifting through waste and debris.
Applications
  • Scrap Handling
  • Job site clean up
  • Sorting
Machine
Metric Tons		 Width
/In		 Length
/In		 Height
/In		 Weight
/KG		 Width
/mm		 Length
/mm		 Height
/mm		 Weight
/Lbs
20 42 43 83 985 1,067 1,092 2,108 2,172
25 45 43 88 1,027 1,143 1,092 2,235 2,264
