*Dimensions and weights provided are based on established production standards for  attachments with pin-on mounts,  but variations may occur due to the manufacturing process.

Hydraulic Thumb Specifications

Features and Benefits

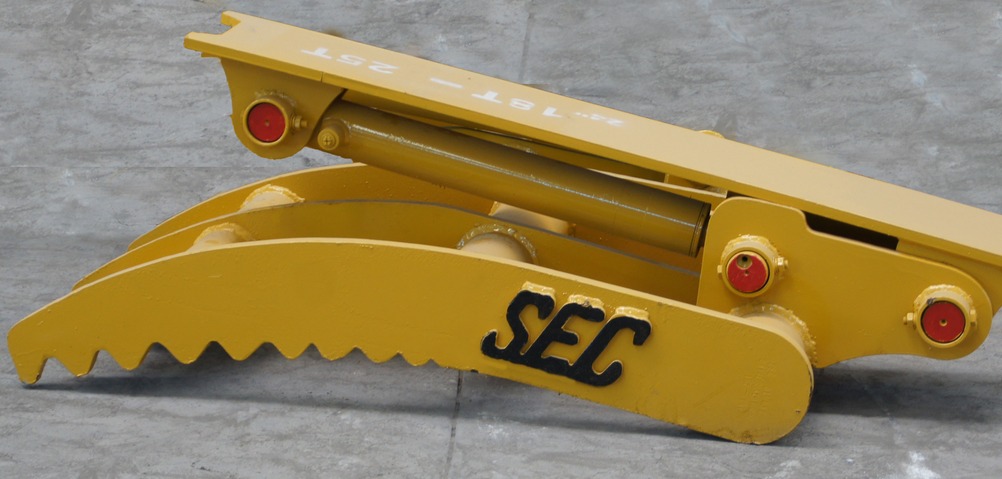

Our hydraulic thumb comes in one piece and is easy to install onto your machine because of the single plate design that is welded to the stick of the excavator.


Attaching a thumb onto your machine increases its payload and efficiency. Used together with a bucket, it becomes a grapple that you can use to handle various materials and easily lift up to 2 tons of concrete.


Our thumb has a wide angle opening to pick up large materials, and it folds all the way back for storage. When stored, the thumb does not interfere with the bucket or the boom and the bucket can be used normally.

Applications
  • Scrap handling
  • Sorting
  • Loading and unloading of materials
  • Site clean-up
Machine
Metric Tons		 Width
/In		 Length
/In		 Height
/In		 Weight
/KG		 Width
/mm		 Length
/mm		 Height
/mm		 Weight
/Lbs
5T - 8T 15 50 19 191 381 1,270 482 422
8T - 15T 20 57 21 246 686 1,448 533 542
20T - 25T 24 66 22 323 635 1,676 559 712
25T - 35T 30 76 20 425 762 1,930 508 937
