Side Shifting Fork Specifications

Features and Benefits

Our Positioning forks are hydraulic powered, so you can adjust the tines to the right size without leaving the vehicle. They are universal standard forklift forks that can be closed tightly without a large gap in between and can be used to handle pallets, equipment, anything that needs to be picked up and moved.
Applications
  • Adds to Wheel Loader job capabilities
  • Handle a wide variety of material handling jobs
Available
Models
Forks Width
/In
Length
/In
Height
/In
Weight
/KG
Width
/mm
Length
/mm
Height
/mm
Weight
/Lbs
IT24,IT28
L90,L120
60" 60 76 37 585 1,524 1,930 940 1,290
72" 72 87 37 620 1,829 2,210 940 1,367
950,966
IT62
72" 72 87 37 620 1,829 2,210 940 1,367
84" 84 100 37 693 2,134 2,540 940 1,528

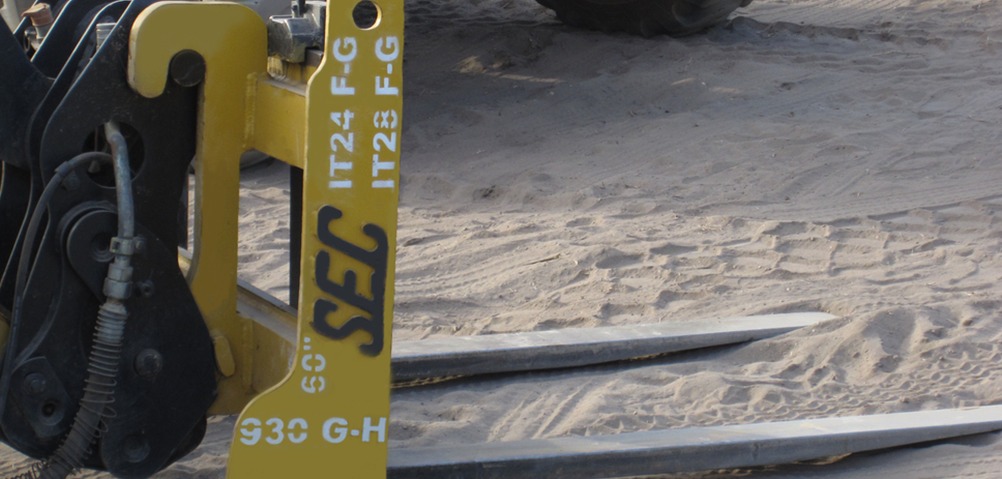

SIDE SHIFTING FORK

*Dimensions and weights provided are based on established production standards for  attachments with pin-on mounts,  but variations may occur due to the manufacturing process.
