*Dimensions and weights provided are based on established production standards for attachments  with pin-on mounts, but variations  may occur due to the manufacturing process.

Digging Bucket Specifications

Features and Benefits

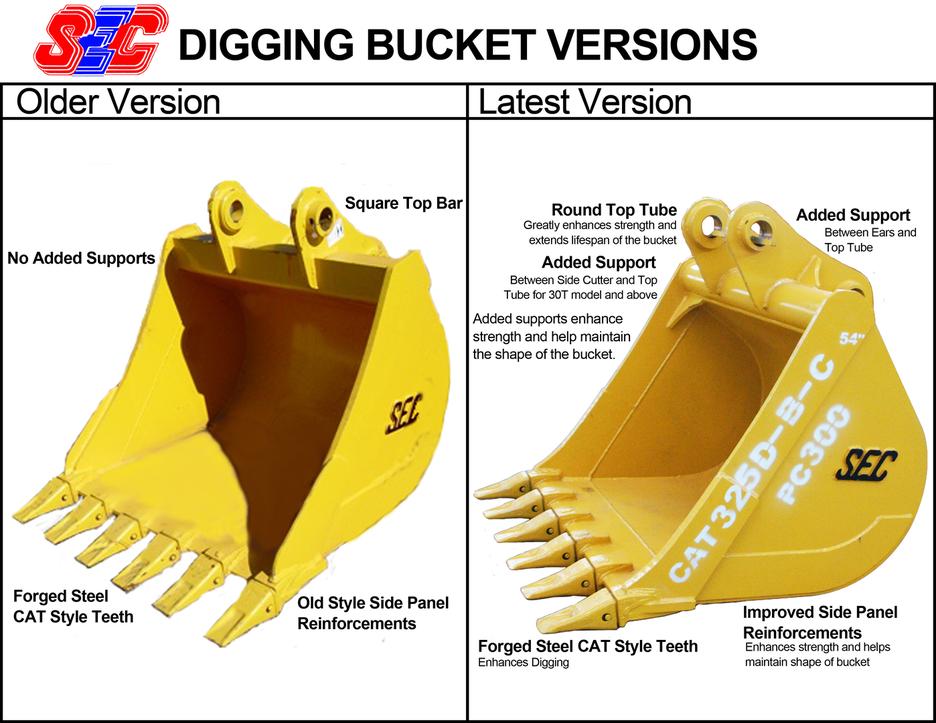

The Rounded top tube greatly enhances strength. Reinforced corners between the side cutter and top tube, as well as between the top tube and the ears are there to give additional support to maintain the shape of the bucket. There are also extra wear pads on the back of the body that extends the life span of the bucket.

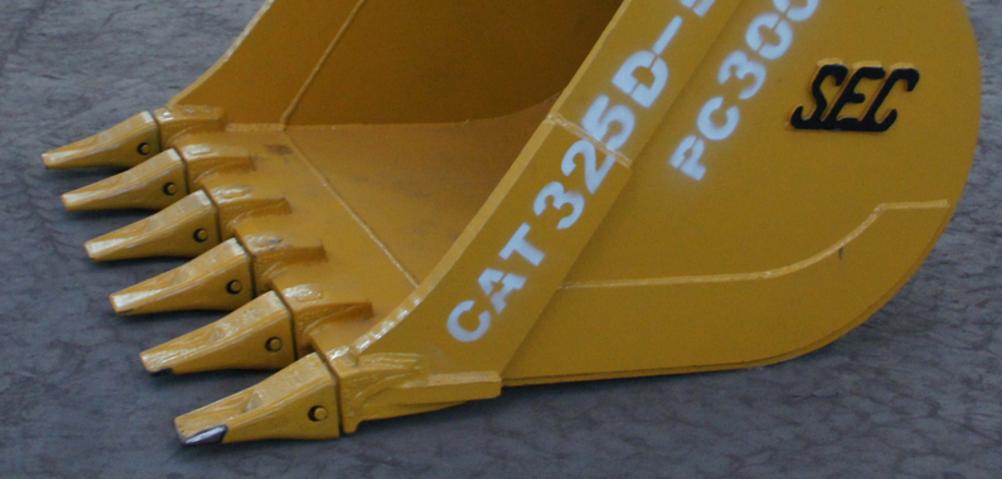

A thicker side bar for protection as well as improving the digging ability of the bucket. An extended cutting edge to decrease wear on the bucket and CAT style teeth so that finding replacements are convenient.


Our Digging buckets are designed to be tough. Extending the life span of the bucket and reducing your maintenance costs as well as get the job done.

Applications
  • Trenching
  • Digging Earth
  • General Purpose Excavating in moderately abrasive surfaces. IE: dirt, loam, gravel, clay


Machine
Metric Tons		 Width
/In		 Length
/In		 Height
/In		 Weight
/KG		 Width
/mm		 Length
/mm		 Height
/mm		 Weight
/Lbs		 Volume
/M3		 Capacity
/M3		 Capacity
/Yd3
12 14 50 43 268 356 1,270 1,092 591 0.1395 0.1885 0.2465
24 50 43 291 610 1,270 1,092 642 0.2531 0.3231 0.4225
36 50 43 393 914 1,270 1,092 866 0.3895 0.4846 0.6338
39 50 43 443 991 1,270 1,092 977 0.4237 0.5250 0.6866
42 50 43 461 1,067 1,270 1,092 1,016 0.4578 0.5654 0.7395
45 50 43 484 1,143 1,270 1,092 1,067 0.4919 0.6058 0.7923
48 50 43 505 1,219 1,270 1,092 1,113 0.5260 0.6462 0.8451
20 24 58 49 499 610 1,473 1,245 1,100 0.2669 0.3414 0.4465
36 58 49 622 914 1,473 1,245 1,371 0.4107 0.5121 0.6698
39 58 49 634 991 1,473 1,245 1,398 0.4467 0.5547 0.7247
42 58 49 652 1,067 1,473 1,245 1,437 0.4826 0.5974 0.7813
45 58 49 674 1,143 1,473 1,245 1,486 0.5186 0.6401 0.8372
48 58 49 709 1,219 1,473 1,245 1,563 0.5545 0.6828 0.8930
54 58 49 763 1,372 1,473 1,245 1,682 0.6264 0.7681 1.0046
25 24 62 54 560 610 1,575 1,372 1,235 0.2813 0.3658 0.4784
36 62 54 663 914 1,575 1,372 1,462 0.4346 0.5486 0.7175
39 62 54 692 991 1,575 1,372 1,526 0.4729 0.5944 0.7774
42 62 54 720 1,067 1,575 1,372 1,587 0.5112 0.6401 0.8372
45 62 54 758 1,143 1,575 1,372 1,671 0.5495 0.6858 0.8969
48 62 54 798 1,219 1,575 1,372 1,759 0.5878 0.7315 0.9567
54 62 54 864 1,372 1,575 1,372 1,905 0.6644 0.8230 1.0760
60 62 54 905 1,524 1,575 1,372 1,995 0.7411 0.9144 1.1959
30 24 72 61 629 610 1,829 1,549 1,387 0.3510 0.4511 0.5900
36 72 61 795 914 1,829 1,549 1,753 0.5422 0.6767 0.8850
48 72 61 896 1,219 1,829 1,549 1,975 0.7333 0.9022 1.1800
54 72 61 938 1,372 1,829 1,549 2,068 0.8289 1.0150 1.3270
60 72 61 1,101 1,524 1,829 1,549 2,427 0.9245 1.1278 1.4751
65 72 61 1,214 1,651 1,829 1,549 2,676 1.0041 1.2217 1.5979
68 72 61 1,247 1,727 1,829 1,549 2,749 1.0519 1.2781 1.6716
40 54 74 68 1,400 1,372 1,880 1,727 3,086 1.2242 1.4813 1.9374
68 74 68 1,559 1,727 1,880 1,727 3,437 1.5571 1.8654 2.4398
72 74 68 1,707 1,829 1,880 1,727 3,763 1.6522 1.9751 2.5833
