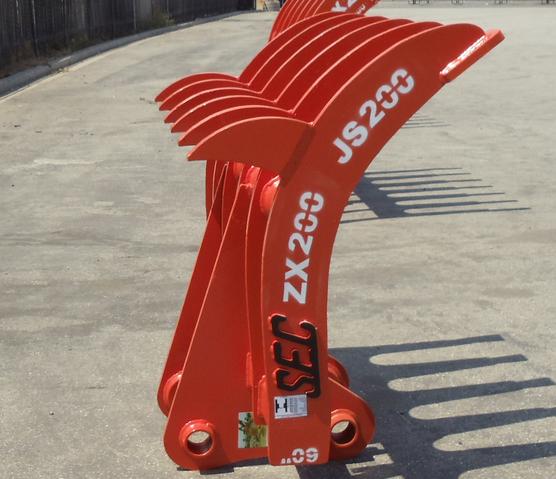

Rake with Back Hooks

The newly designed rake expands and improves the functions and capabilities of the attachment. The hooks on the back of the rake serve as a sharper ground penetrating tool when needed, provide more leverage when uprooting stumps and roots and makes sifting through debris faster and easier, by being able to use both sides of the rake.


The new rake design also has a larger curved profile, compared to the older design, so that the rake is able to handle more volume per pass and provides better material handling.

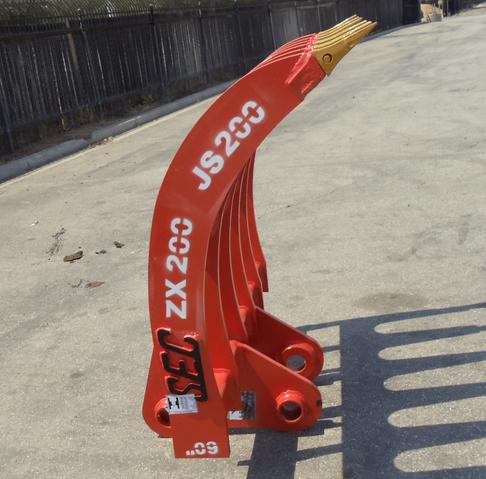

Rake with Replaceable Teeth

​The new rake design has a larger curved profile, so that the rake is able to handle more volume per pass and provides better material handling.

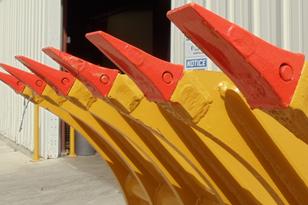

The replaceable teeth greatly extends the lifespan and usability of the rake.

New Design

Old Design

New Design

GET A QUOTE!

Enter your inquires and info at the form.

We will get to you as soon as possible.

*Dimensions and weights provided are based on established production standards for  attachments with pin-on mounts,  but variations may occur due to the manufacturing process.

Specifications for Rake

Features and Benefits

A great tool for land clearing, the rake easily removes roots and stumps to clear land quickly. The thick cutting edge of the teeth greatly increases durability of the rake and curved tines offer maximum force projection.

When combined with a thumb they make an excellent high volume material handling solution.

Applications
  • Forestry
  • Land Clearing
  • Site preparation


Machine
Metric Tons		 Width
/In		 Length
/In		 Height
/In		 Weight
/KG		 Width
/mm		 Length
/mm		 Height
/mm		 Weight
/Lbs
12 60 24 55 372 1,524 610 1,397 820
20 60 30 61 527 1,524 762 1,549 1,162
68 30 61 539 1,727 762 1,549 1,188
25 60 28 65 546 1,524 711 1,651 1,204
68 28 65 567 1,727 711 1,651 1,250
72 28 65 774 1,829 711 1,651 1,706
30 68 30 65 603 1,727 762 1,651 1,329
72 30 65 807 1,829 762 1,651 1,779
80 30 65 747 2,032 762 1,651 1,647
