Features and Benefits

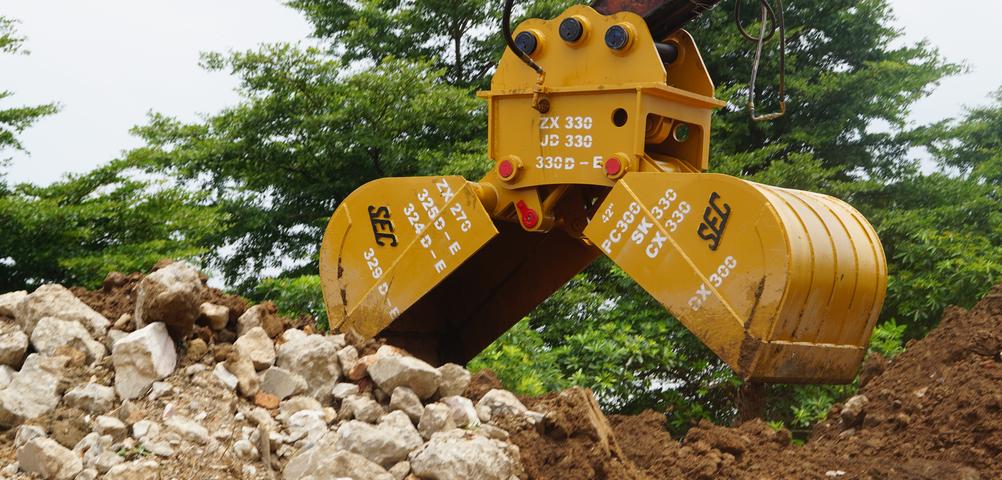

Our Clamshell Grapple Bucket – 3 Pin Hole is a great multi-functional tool to have on the job site. It is capable of loading, lifting and dumping, as well as digging, dredging or even used as a grapple.

With its fast cycle time of being able to do 15 lifts in 5 minutes, it greatly increases productivity on the job site. It is capable of lifting full bucket loads, the capacity per lift is 1 cubic meter or 1.2 tons of dirt. It can also be used to dig through dirt or clay and can dig up to 6 meters deep.

The 3 Pin Hole Design enables the bucket to be used on excavators that do not have 3rd valves/hydraulic lines. Simple mount the stick in the middle pin hole, and reroute the bucket cylinder hydraulic line to the Clamshell Grapple Bucket.

CLAMSHELL BUCKET - 3 PIN HOLE


Machine
Metric Tons
Width
/In
Length
/In
Height
/In
Weight
/KG
Width
/mm
Length
/mm
Height
/mm
Weight
/Lbs
25 42 55 84 1,760 1,067 1,397 2,134 3,880
30 54 55 90 1,932 1,372 1,397 2,286 4,260
Applications
  • Loading sand, aggregate & rock
  • General purpose use
  • Clean up and earth moving


Clamshell Bucket - 3 Pin Hole Specifications

*Dimensions and weights provided are based on established production standards for  attachments with pin-on mounts, but variations may occur due to the manufacturing process.
