*Dimensions and weights provided are based on established production standards for attachments with pin-on mounts, but variations may occur due to the manufacturing process.
Ditching Bucket Specifications
Features and Benefits

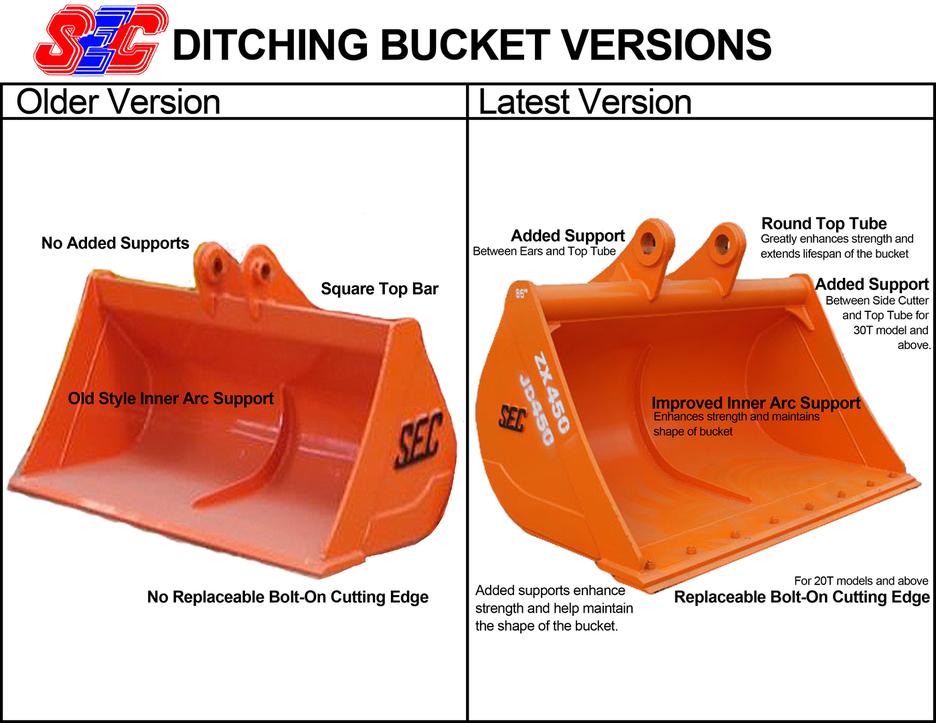

The Rounded top tube greatly enhances strength. Reinforced corners between the side cutter and top tube, between the top tube and the ears, as well as an inner support arc are there to better maintain the shape of the bucket. Wear pads on the back of the body and a reversible bolt on cutting edge that can be replaced extends the life span of the bucket.
Our Ditching Buckets are designed to be tough and enhance load capacity, wide buckets ranging from 65" - 86" removes ditch sediment quickly, increasing your productivity and getting the job done faster.
Machine Metric Tons |
Width /In |
Length /In |
Height /In |
Weight /KG |
Width /mm |
Length /mm |
Height /mm |
Weight /Lbs |
Volume /M3 |
Capacity /M3 |
Capacity /Yd3 |
---|---|---|---|---|---|---|---|---|---|---|---|
Backhoe | 42 | 27 | 32 | 209 | 1,067 | 686 | 813 | 461 | 0.1989 | 0.2560 | 0.3348 |
45 | 27 | 32 | 220 | 1,143 | 686 | 813 | 485 | 0.2135 | 0.2743 | 0.3587 | |
48 | 27 | 32 | 228 | 1,219 | 686 | 813 | 503 | 0.2282 | 0.2926 | 0.3827 | |
50 | 27 | 32 | 237 | 1,270 | 686 | 813 | 522 | 0.2380 | 0.3048 | 0.3986 | |
53 | 27 | 32 | 245 | 1,346 | 686 | 813 | 540 | 0.2526 | 0.3231 | 0.4225 | |
6 | 58 | 27 | 32 | 262 | 1,473 | 686 | 813 | 578 | 0.2770 | 0.3536 | 0.4624 |
60 | 27 | 32 | 271 | 1,524 | 686 | 813 | 597 | 0.2868 | 0.3658 | 0.4784 | |
12 | 36 | 32 | 37.5 | 269 | 914 | 813 | 953 | 593 | 0.2442 | 0.3109 | 0.4066 |
42 | 32 | 37.5 | 339 | 1,067 | 813 | 953 | 747 | 0.2865 | 0.3627 | 0.4743 | |
45 | 32 | 37.5 | 398 | 1,143 | 813 | 953 | 877 | 0.3077 | 0.3886 | 0.5082 | |
63 | 32 | 37.5 | 386 | 1,600 | 813 | 953 | 851 | 0.4348 | 0.5441 | 0.7116 | |
65 | 32 | 37.5 | 406 | 1,651 | 813 | 953 | 895 | 0.4489 | 0.5613 | 0.7341 | |
68 | 32 | 37.5 | 418 | 1,727 | 813 | 953 | 922 | 0.4701 | 0.5872 | 0.7680 | |
20 | 42 | 43 | 44.5 | 529 | 1,067 | 1,092 | 1,130 | 1,166 | 0.4826 | 0.5974 | 0.7813 |
60 | 43 | 44.5 | 718 | 1,524.0 | 1,092 | 1,130 | 1,583 | 0.6983 | 0.8534 | 1.1162 | |
72 | 43 | 44.5 | 759 | 1,829 | 1,092 | 1,130 | 1,673 | 0.8422 | 1.0241 | 1.3394 | |
76 | 43 | 44.5 | 785 | 1,930 | 1,092 | 1,130 | 1,731 | 0.8901 | 1.0810 | 1.4138 | |
80 | 43 | 44.5 | 814 | 2,032 | 1,092 | 1,130 | 1,795 | 0.9380 | 1.1379 | 1.4883 | |
25 | 69 | 48 | 50 | 878 | 1,753 | 1,219 | 1,270 | 1,936 | 0.8560 | 1.0516 | 1.3754 |
80 | 48 | 50 | 907 | 2,032 | 1,219 | 1,270 | 2,000 | 0.9965 | 1.2192 | 1.5946 | |
83 | 48 | 50 | 941 | 2,108 | 1,219 | 1,270 | 2,075 | 1.0348 | 1.2649 | 1.6544 | |
30 | 72 | 52 | 54 | 1,093 | 1,829 | 1,321 | 1,372 | 2,410 | 1.1157 | 1.3533 | 1.7700 |
83 | 52 | 54 | 1,057 | 2,108 | 1,321 | 1,372 | 2,330 | 1.2909 | 1.5601 | 2.0405 | |
86 | 52 | 54 | 1,080 | 2,184 | 1,321 | 1,372 | 2,381 | 1.3387 | 1.6165 | 2.1143 | |
40 | 86 | 56 | 61 | 1,251 | 2,184 | 1,422 | 1,549 | 2,758 | 1.9851 | 2.3592 | 3.0857 |
90 | 56 | 61 | 1,268 | 2,286 | 1,422 | 1,549 | 2,795 | 2.0803 | 2.4689 | 3.2291 |
